Engine Room® LVL12 Power Supply

2,099.00 kr
2,099.00 kr 2,099.00 kr
Sale Sold out
inc. VAT*

Sale

New

Best Seller

Engine Room® LVL12 Power Supply

Engine Room® LVL12 Power Supply

2,099.00 kr
2,099.00 kr 2,099.00 kr
Sale Sold out
inc. VAT*
Region: EU
Color: Gray
Shipping & Returns
Shipping

Free shipping on orders over 1149 kr. Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more

Returns

Return or exchange your purchase for any reason within 30 days of receipt. Learn more

View full details

Engine Room® LVL12 Power Supply

2,099.00 kr
2,099.00 kr 2,099.00 kr
Sale Sold out

      Details

      Summary

      Overview

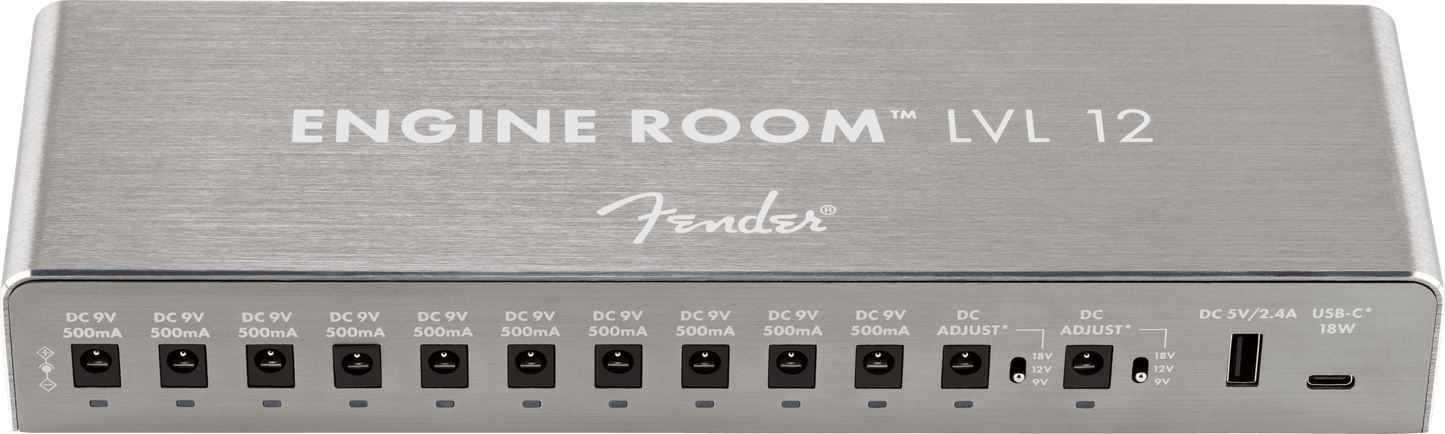

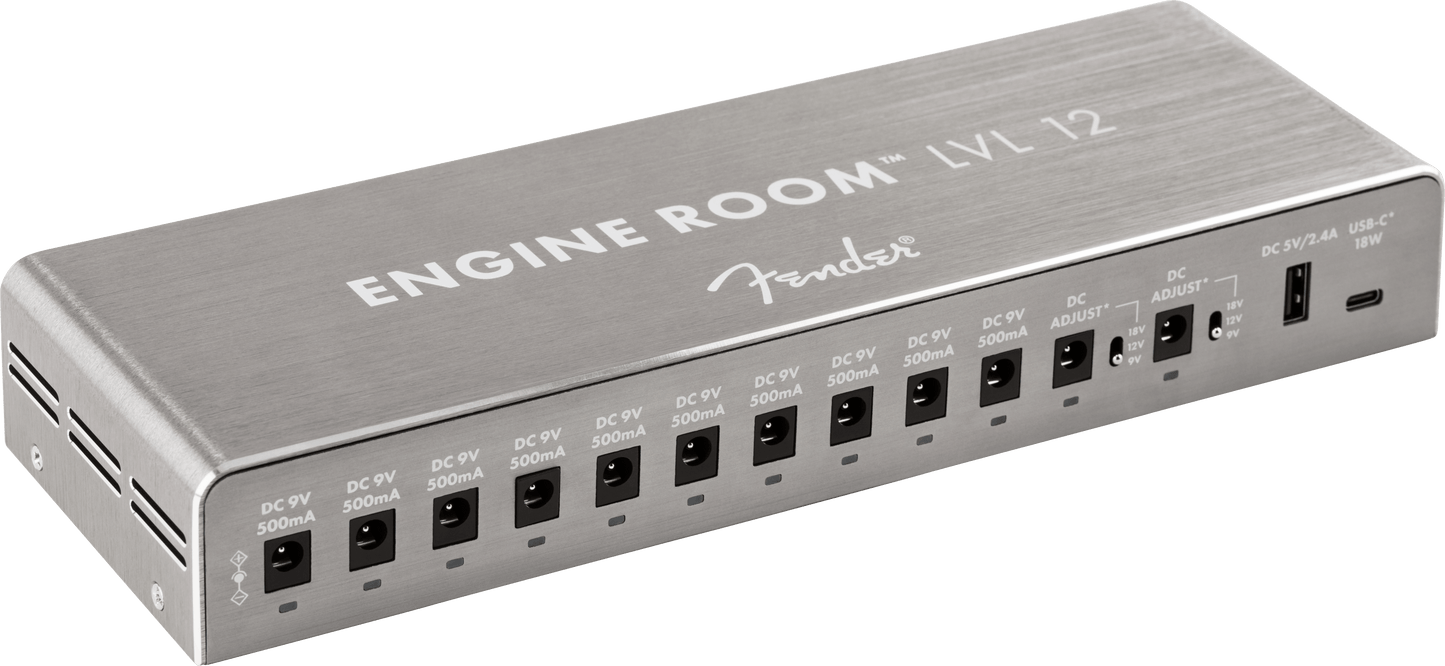

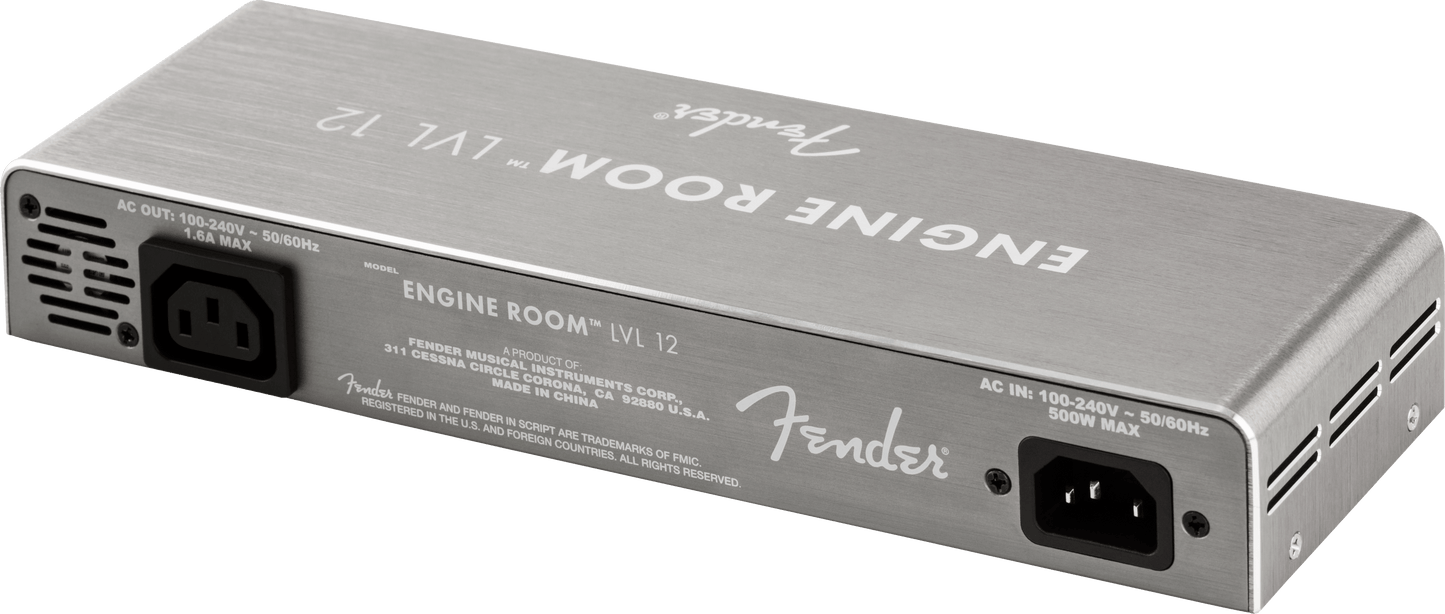

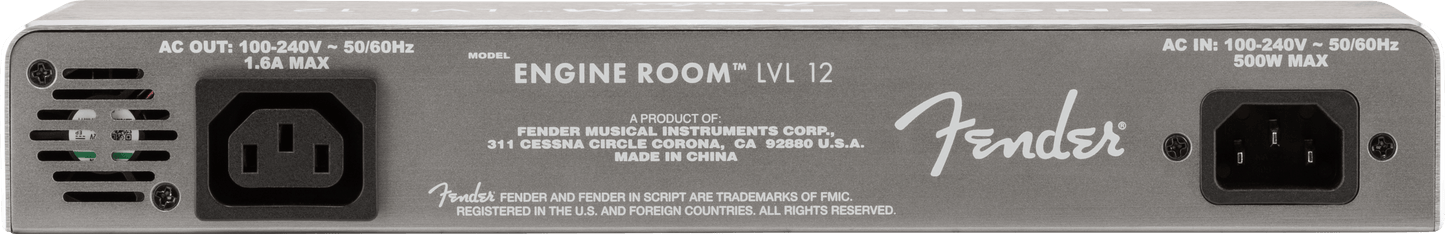

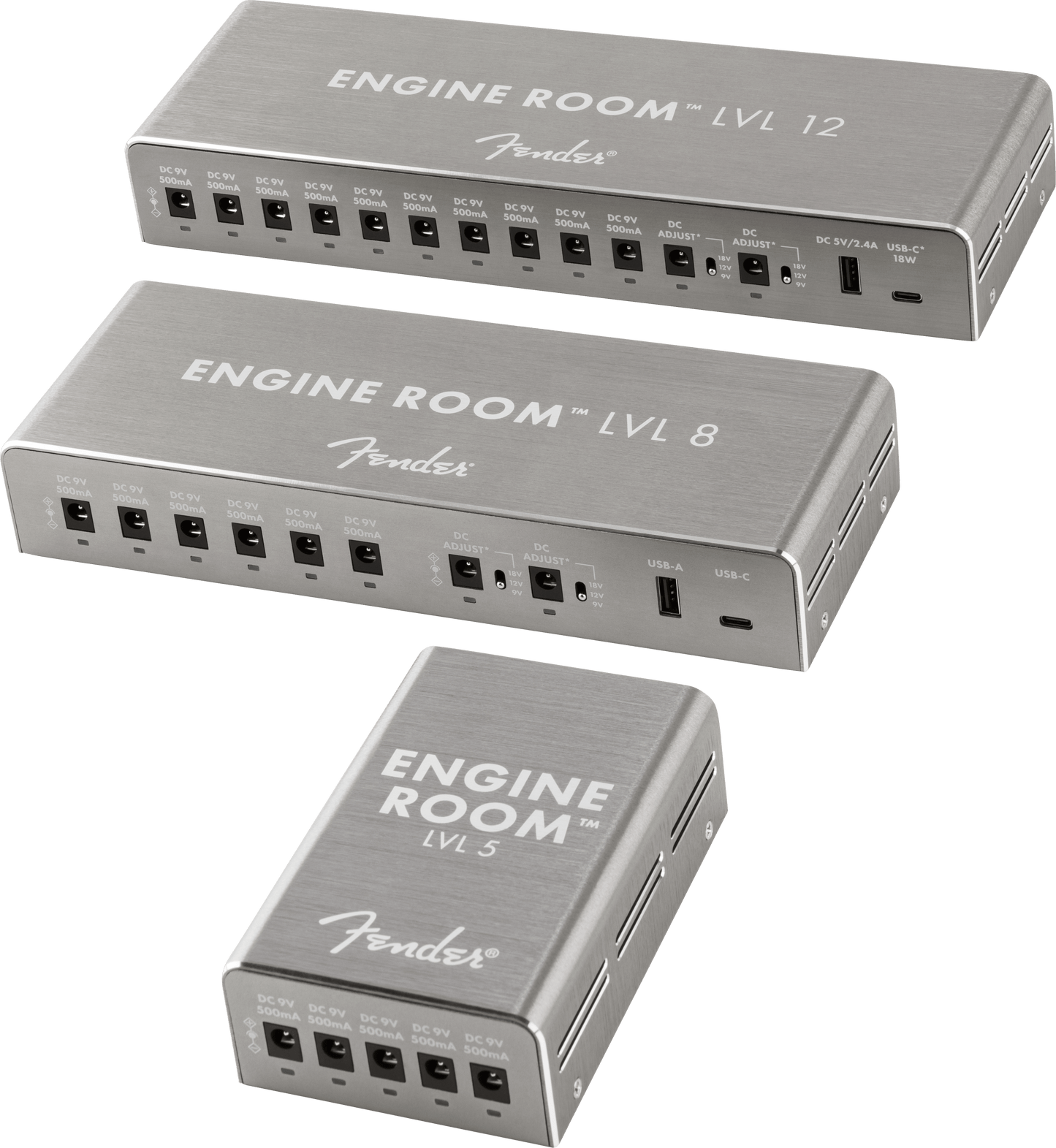

      Designed to accommodate all your pedalboard needs, the Engine Room® LVL 12 is ready to deliver. Featuring twelve ground isolated power outlets, (10) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. A courtesy IEC outlet on the back allows you to add an additional Engine Room® LVL5, LVL8, or even LVL12 for the biggest rigs.

      The Engine Room® Power Supply was designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance.

      Overview

      Features

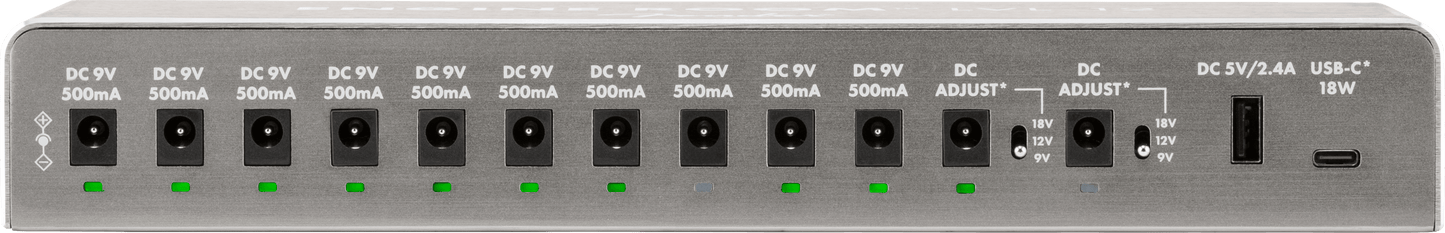

      • 12 ground isolated outputs - 10 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
      • Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
      • Standard IEC mains voltage connector
      • Dimensions: Width: 11.1" (282mm), Height: 1.65" (42mm), Depth: 3.66" (93mm)
      • 5V USB-A and USBC output for charging smart devices

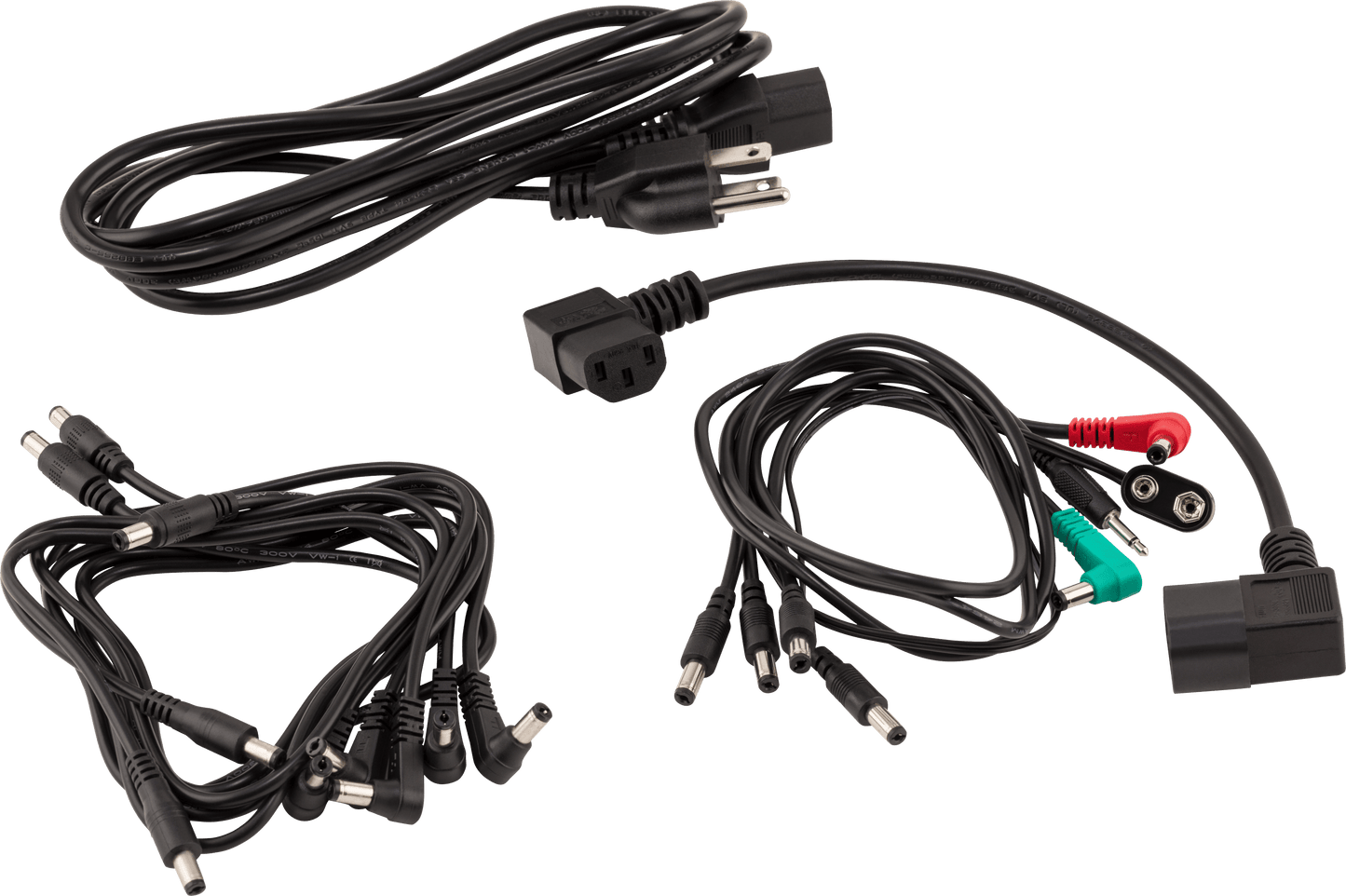

      • Cable kit included
        • 6 x 2.1mm barrel connector 24" (60cm) length
        • 4 x 2.1mm barrel connector 18" (45cm) length
        • 2 x 2.1mm barrel connector 12" (30cm) length
        • 1 x 2.5mm to 2.1mm barrel
        • 1 x 2.5mm to 2.1mm barrel reverse polarity
        • 1 x 3.5mm TS to 2.1mm barrel
        • 1 x 9V Battery clip to 2.1mm barrel
        • 1x IEC daisy-chain cable (male to female)

      Accessories

      Included Accessories

      6 x 2.1mm barrel connector 24” (60cm) length 4 x 2.1mm barrel connector 18” (45cm) length 2 x 2.1mm barrel connector 12” (30cm) length 1 x 2.5mm to 2.1mm barrel 1 x 2.5mm to 2.1mm barrel reverse polarity 1 x 3.5mm TS to 2.1mm barrel 1 x 9V Battery clip to 2.1mm barrel 1x IEC daisy-chain cable (male to female)

      Electronics

      Output

      12 - Ground Isolated Outputs; 10 (9V/500mA), 2 Switchable (9V/500mA, 12V/375mA, 18V/250mA)

      Voltage

      230V EUR

      General

      Color

      Gray

      Material

      Anodized Aluminum

      Product Name

      Engine Room™ LVL12 Power Supply, 230V EUR

      Series

      Engine Room®

      Measurements

      Product Depth

      3.66” (93mm)

      Product Height

      1.65” (42mm)

      Product Height/Length

      1.65” (42mm)

      Product Weight

      1.84 lbs. (835g)

      Product Width

      12.84" (32.8 cm)

      Miscellaneous

      Power Cable

      6.6 ft (2 m) IEC

      Accessories

      Included Accessories

      6 x 2.1mm barrel connector 24” (60cm) length 4 x 2.1mm barrel connector 18” (45cm) length 2 x 2.1mm barrel connector 12” (30cm) length 1 x 2.5mm to 2.1mm barrel 1 x 2.5mm to 2.1mm barrel reverse polarity 1 x 3.5mm TS to 2.1mm barrel 1 x 9V Battery clip to 2.1mm barrel 1x IEC daisy-chain cable (male to female)

      Electronics

      Output

      12 - Ground Isolated Outputs; 10 (9V/500mA), 2 Switchable (9V/500mA, 12V/375mA, 18V/250mA)

      Voltage

      230V UK

      General

      Color

      Gray

      Material

      Anodized Aluminum

      Product Name

      Engine Room™ LVL12 Power Supply, 230V UK

      Series

      Engine Room®

      Measurements

      Product Depth

      3.66” (93mm)

      Product Height

      1.65” (42mm)

      Product Height/Length

      1.65” (42mm)

      Product Weight

      1.84 lbs. (835g)

      Product Width

      12.84" (32.8 cm)

      Miscellaneous

      Power Cable

      6.6 ft (2 m) IEC
