Engine Room® LVL5 Power Supply

1,699.00 kr
1,699.00 kr 1,699.00 kr
Sale Sold out
inc. VAT*

Sale

New

Engine Room® LVL5 Power Supply

Engine Room® LVL5 Power Supply

1,699.00 kr
1,699.00 kr 1,699.00 kr
Sale Sold out
inc. VAT*
Region: EU
Color: Gray
Shipping & Returns
Shipping

Free shipping on orders over 1149 kr. Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more

Returns

Return or exchange your purchase for any reason within 30 days of receipt. Learn more

View full details

Engine Room® LVL5 Power Supply

1,699.00 kr
1,699.00 kr 1,699.00 kr
Sale Sold out

      Details

      Summary

      Overview

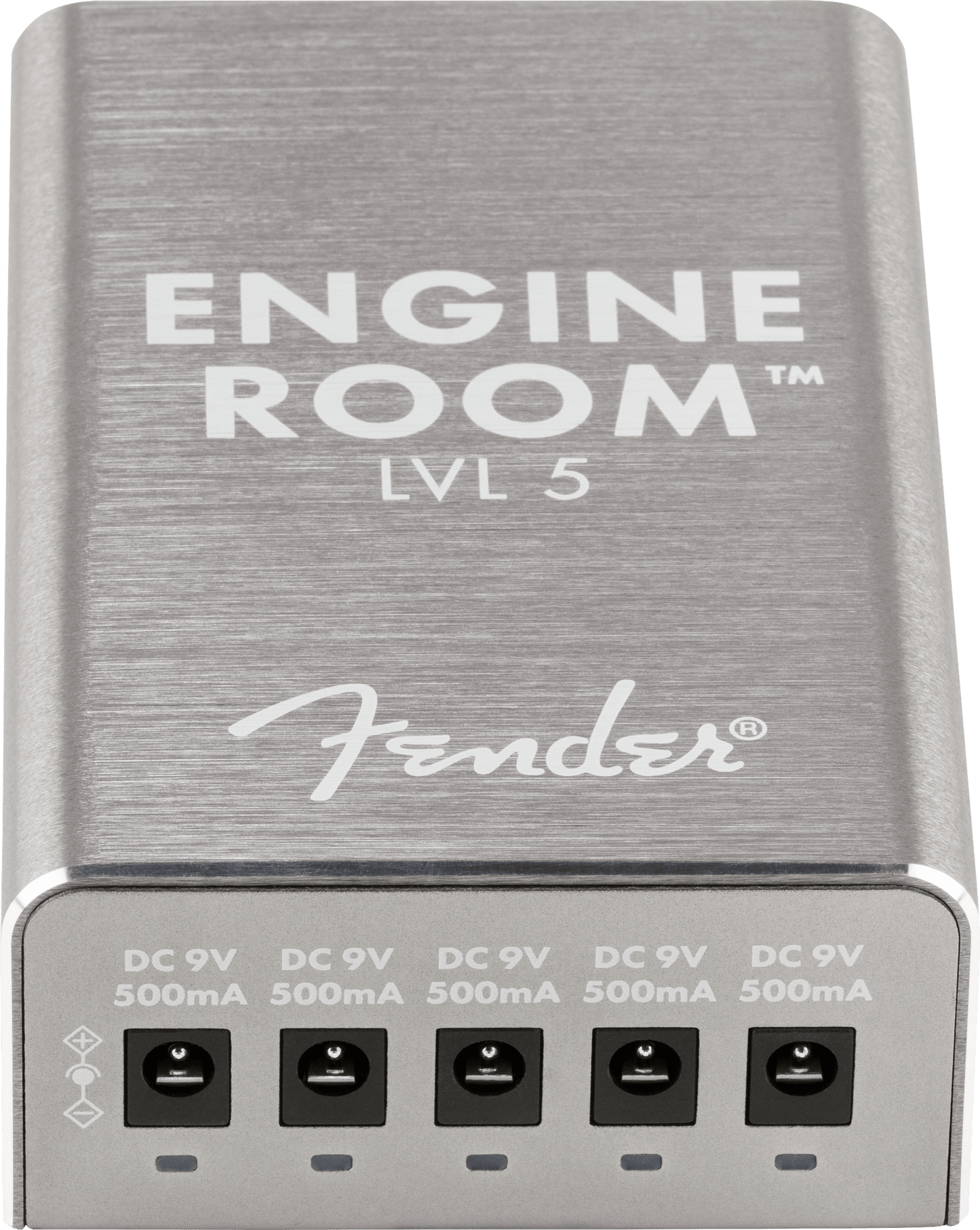

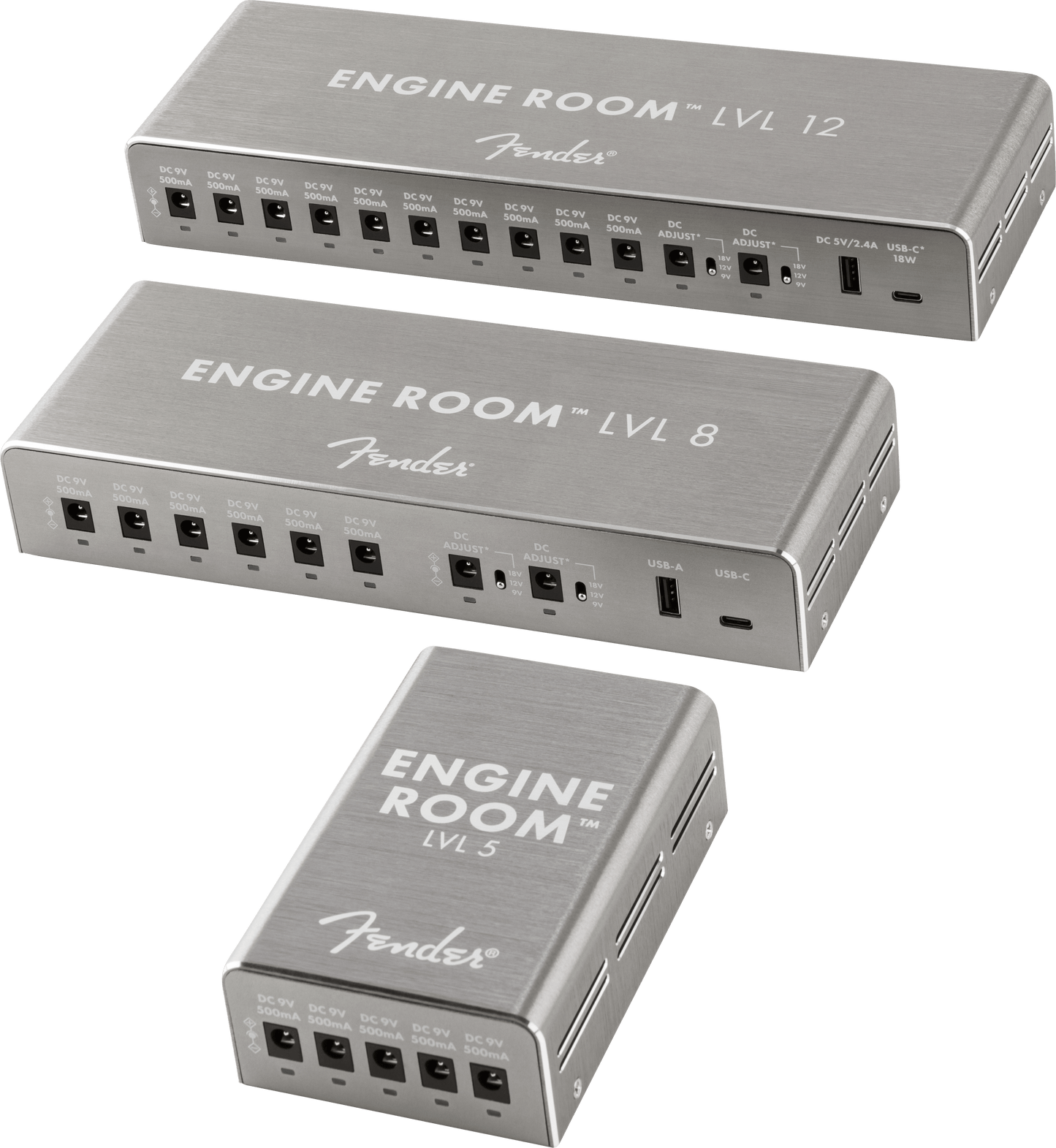

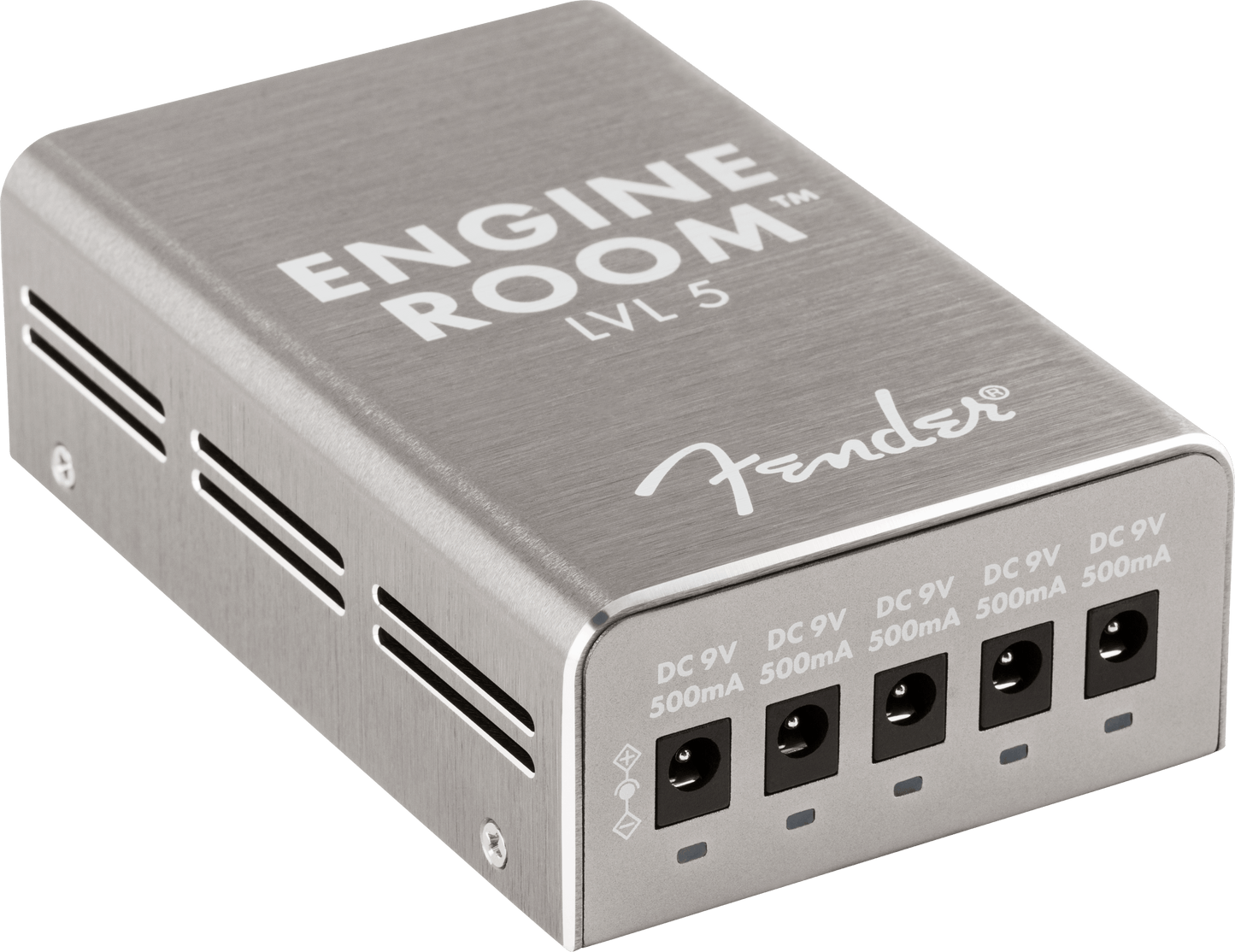

      Pedals need clean, isolated power and Fender's Engine Room® LVL5 Power Supply is capable of the task. Featuring five ground isolated power outlets, each outlet is capable of 9Vdc at 500mA to keep your pedals performing at their peak. Works as a standalone power supply for smaller pedalboards or can be daisy-chained with our LVL 12 for those tone fanatics with larger boards.

      The Engine Room® Power Supply was designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Also features a 2-color LED indicator for each output, green indicating current consumption. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance.

      Overview

      Features

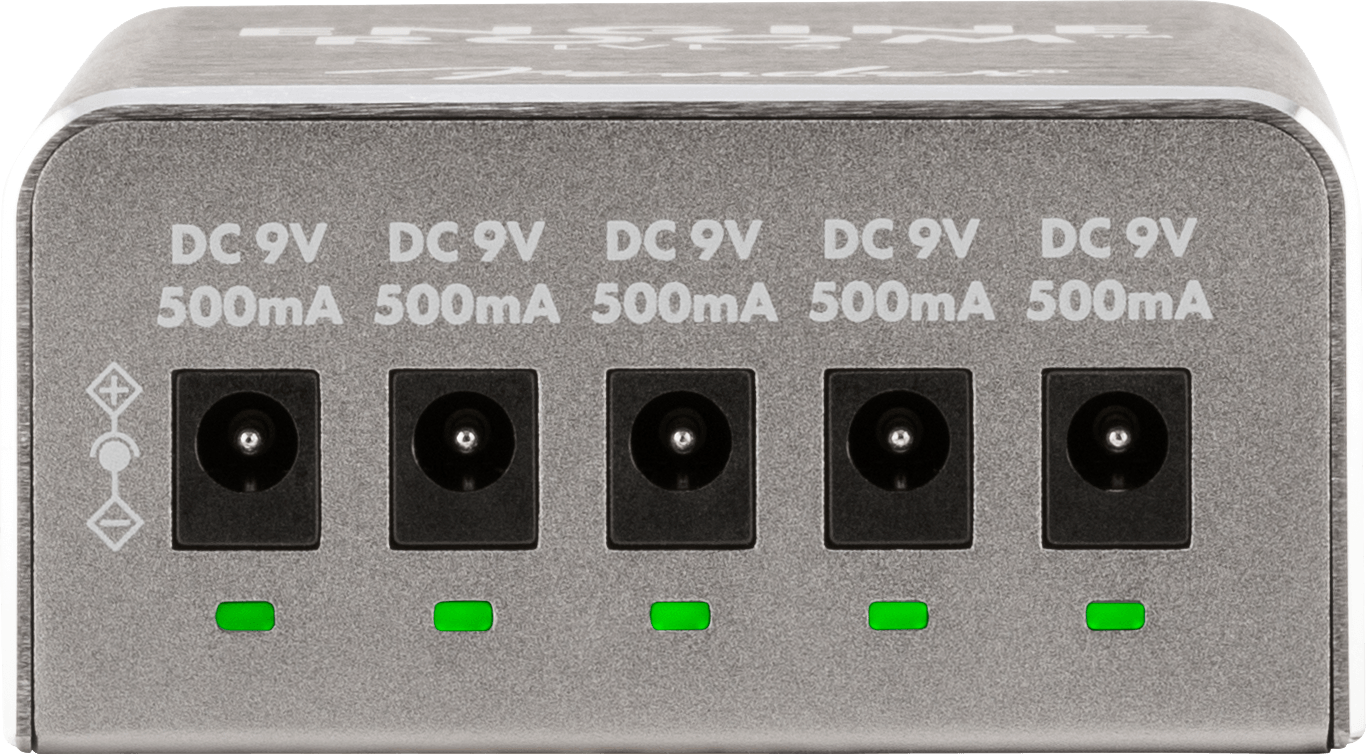

      • 5 ground isolated outputs each capable of 9Vdc @ 500mA

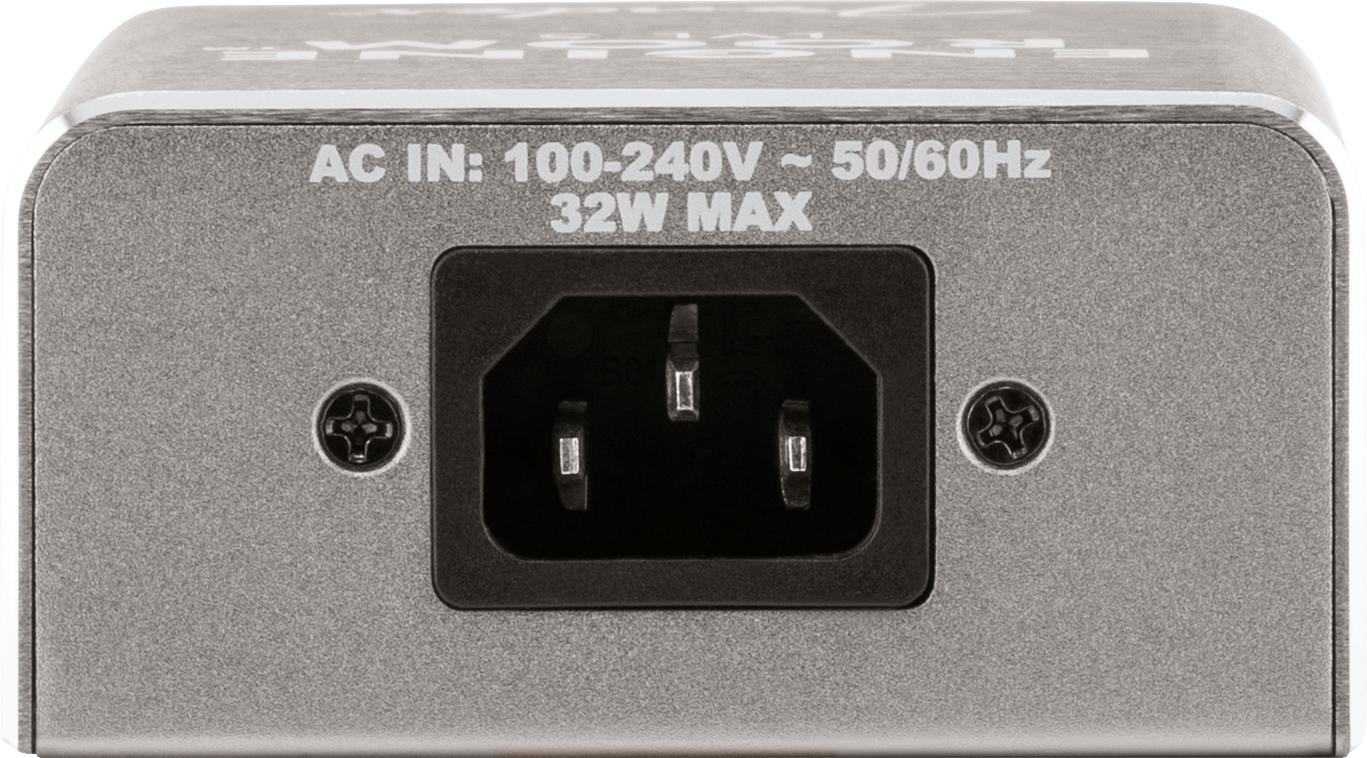

      • Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world

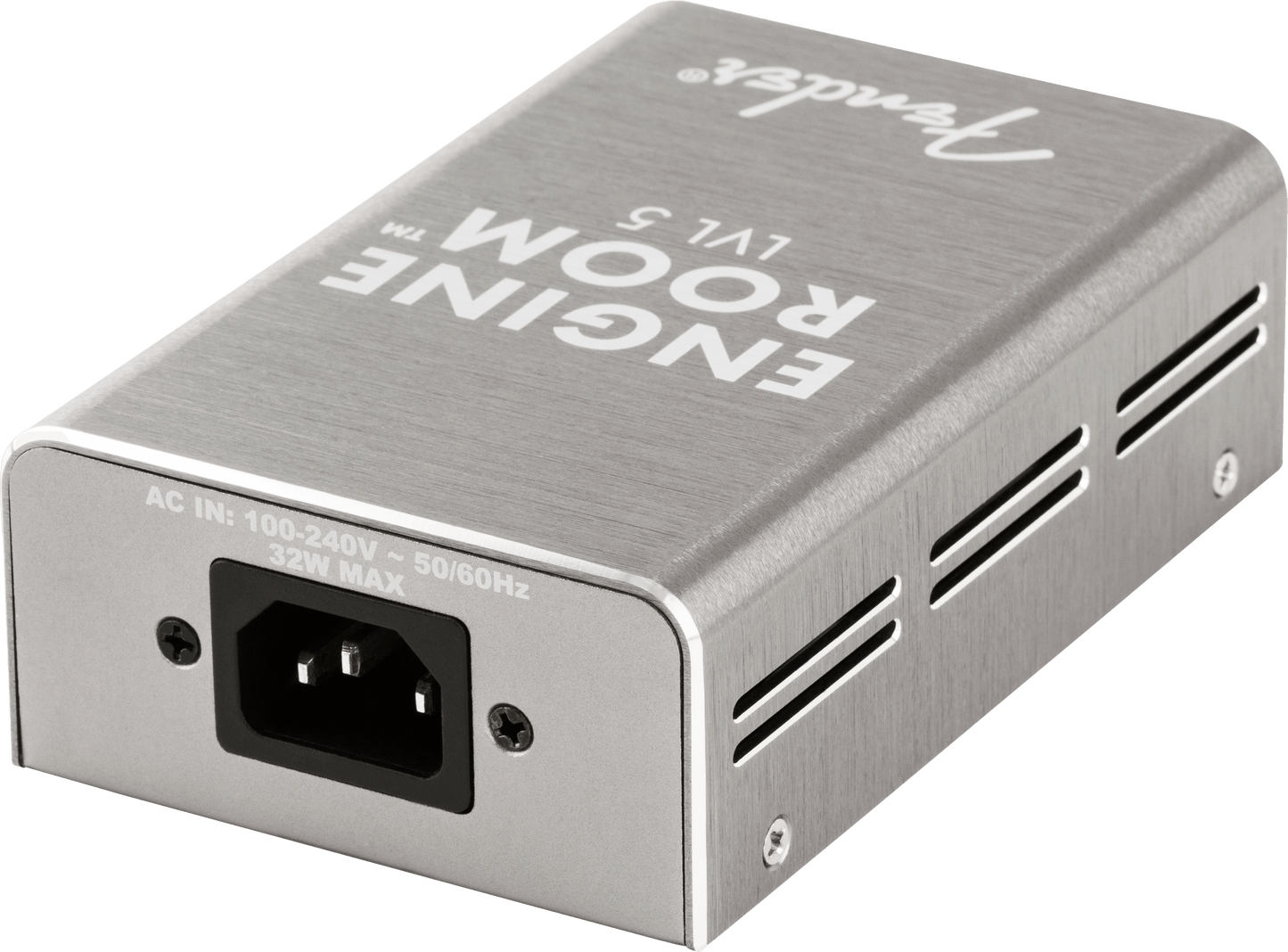

      • Standard IEC mains voltage connector
      • Dimensions: Width: 3.35" (85mm), Height: 1.65" (42mm), Depth: 5.17" (131.3mm)

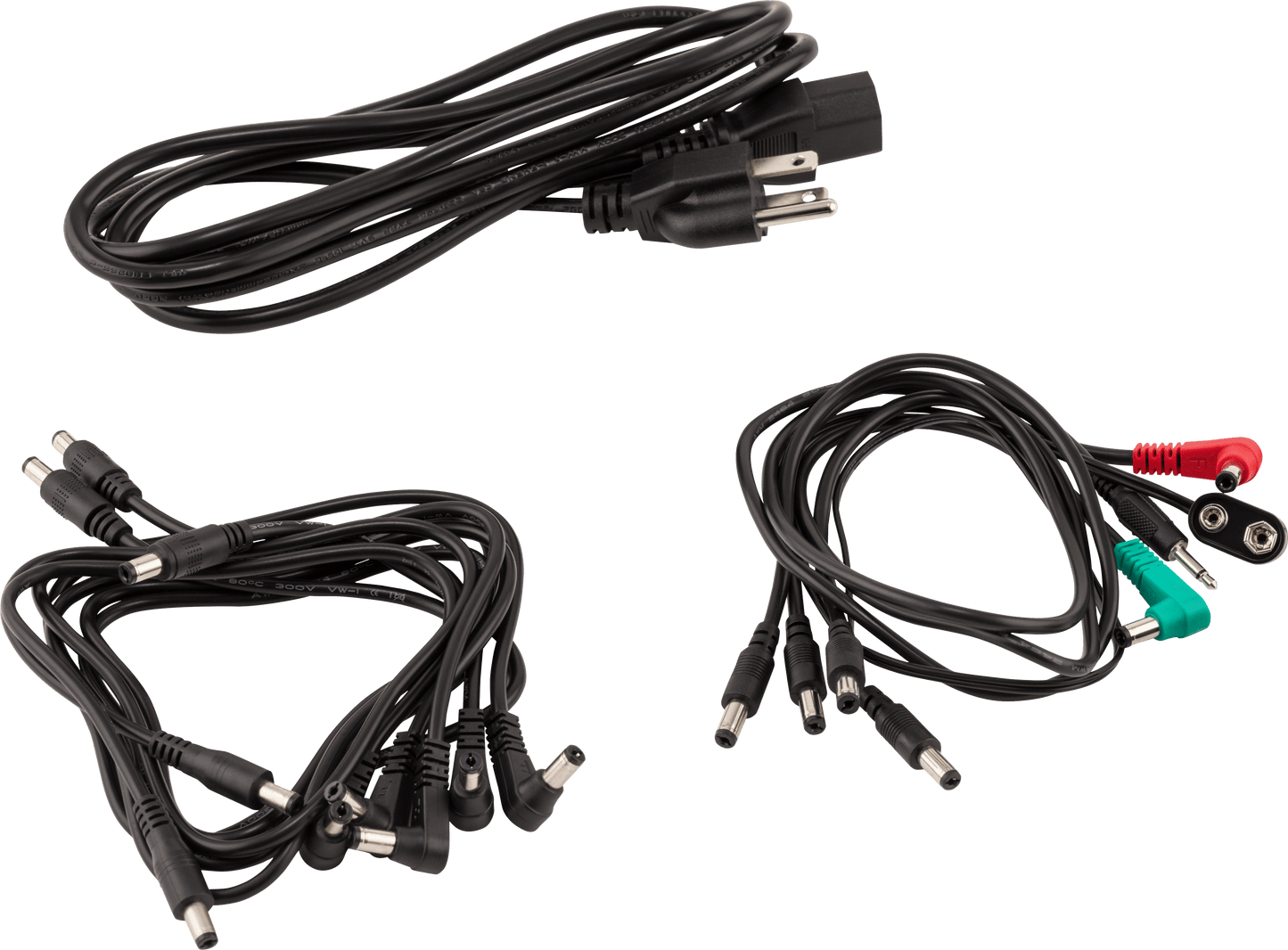

      • Cable kit included
      • 2 x 2.1mm barrel connector 24" (60cm) length
      • 4 x 2.1mm barrel connector 18" (45cm) length
      • 1 x 2.1mm barrel connector 12" (30cm) length
      • 1 x 2.5mm to 2.1mm barrel
      • 1 x 2.5mm to 2.1mm barrel reverse polarity
      • 1 x 3.5mm TS to 2.1mm barrel
      • 1 x 9V Battery clip to 2.1mm barrel

      Accessories

      Included Accessories

      2 x 2.1mm barrel connector 24” (60cm) length 4 x 2.1mm barrel connector 18” (45cm) length 1 x 2.1mm barrel connector 12” (30cm) length 1 x 2.5mm to 2.1mm barrel 1 x 2.5mm to 2.1mm barrel reverse polarity 1 x 3.5mm TS to 2.1mm barrel 1 x 9V Battery clip to 2.1mm barrel

      Electronics

      Output

      5 - Ground Isolated Outputs (9V/500mA)

      Voltage

      230V EUR

      General

      Color

      Gray

      Material

      Anodized Aluminum

      Product Name

      Engine Room™ LVL5 Power Supply, 230V EUR

      Series

      Engine Room®

      Measurements

      Product Depth

      5.17” (131.3mm)

      Product Height

      1.65” (42mm)

      Product Height/Length

      1.65” (42mm)

      Product Weight

      0.82 lbs. (375g)

      Product Width

      3.35” (85mm)

      Miscellaneous

      Power Cable

      6.6 ft (2 m) IEC

      Accessories

      Included Accessories

      2 x 2.1mm barrel connector 24” (60cm) length 4 x 2.1mm barrel connector 18” (45cm) length 1 x 2.1mm barrel connector 12” (30cm) length 1 x 2.5mm to 2.1mm barrel 1 x 2.5mm to 2.1mm barrel reverse polarity 1 x 3.5mm TS to 2.1mm barrel 1 x 9V Battery clip to 2.1mm barrel

      Electronics

      Output

      5 - Ground Isolated Outputs (9V/500mA)

      Voltage

      230V UK

      General

      Color

      Gray

      Material

      Anodized Aluminum

      Product Name

      Engine Room™ LVL5 Power Supply, 230V UK

      Series

      Engine Room®

      Measurements

      Product Depth

      5.17” (131.3mm)

      Product Height

      1.65” (42mm)

      Product Height/Length

      1.65” (42mm)

      Product Weight

      0.82 lbs. (375g)

      Product Width

      3.35” (85mm)

      Miscellaneous

      Power Cable

      6.6 ft (2 m) IEC
