Input Impedance
1M Ohm
Output Impedance
470 ohm
Power Consumption
85mA
Power Requirements
9-Volt Battery or 9VDC Center Negative AC Adapter (not included)
Hammertone® Breakup Drive
Ordinarie pris
879.00 kr
Ordinarie pris
879.00 kr
879.00 kr
Försäljningspris
Enhetspris
per
inkl. moms*
Hammertone® Breakup Drive
Hammertone® Breakup Drive
Ordinarie pris
879.00 kr
Ordinarie pris
879.00 kr
879.00 kr
Försäljningspris
Enhetspris
per
inkl. moms*
Det gick inte att ladda hämtningstillgänglighet
Leverans och returer
Gratis leverans för beställningar över 1149 kr. Leveranstider: standard 2–4 dagar, express 1–3 dagar. Mer information
Du kan returnera eller byta produkten du köpt inom 30 dagar efter att du fick den, oavsett orsak. Mer information
Information
Översikt
Översikt

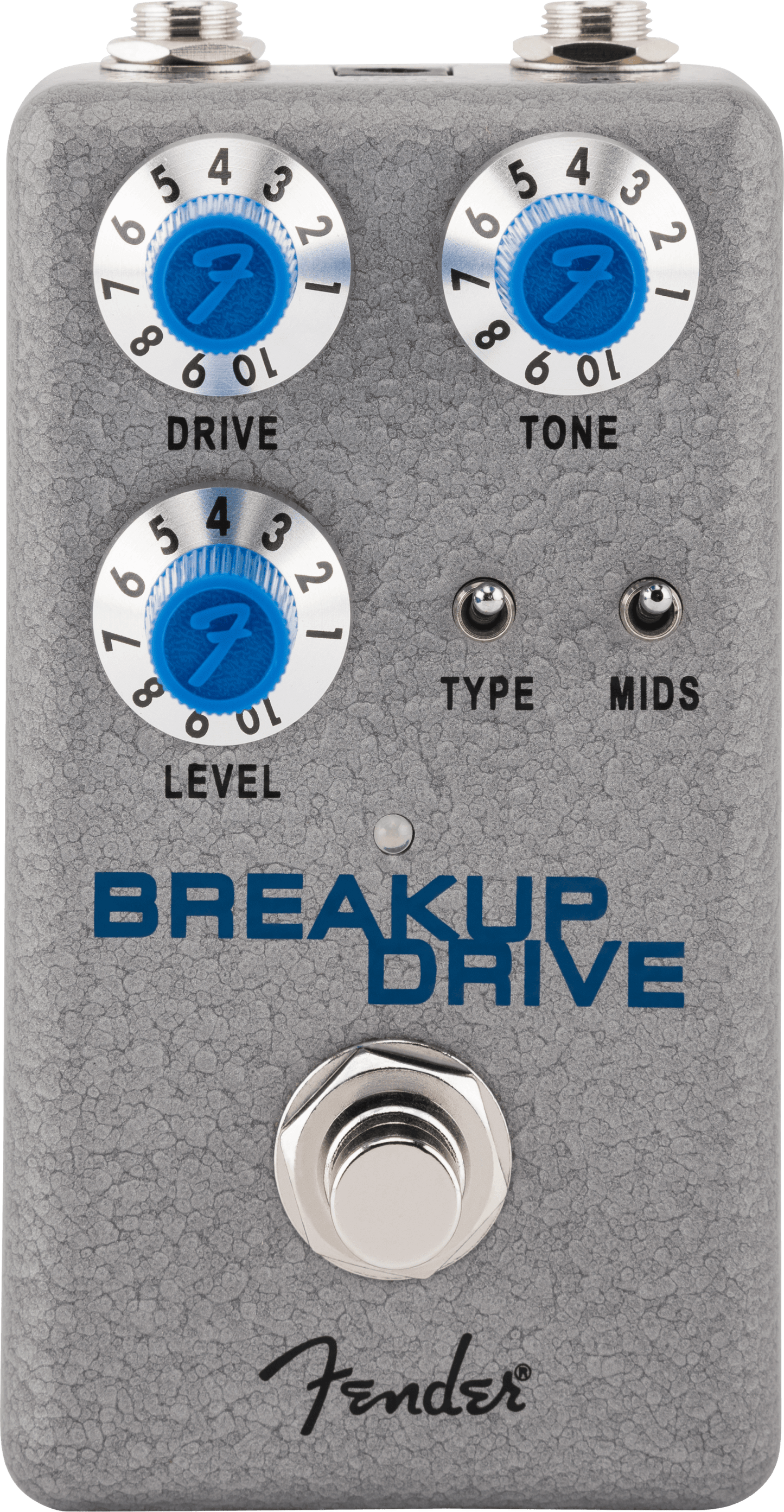

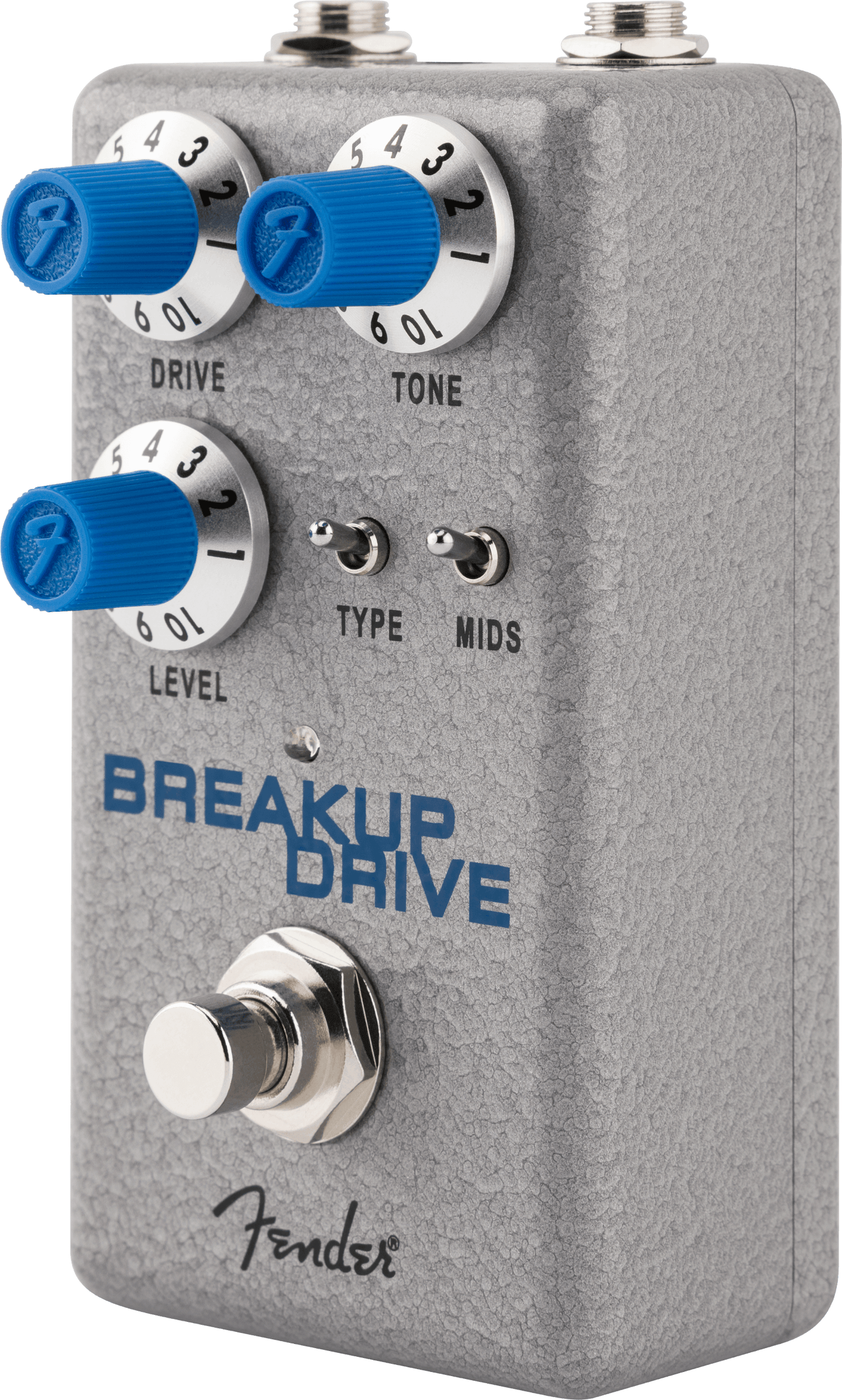

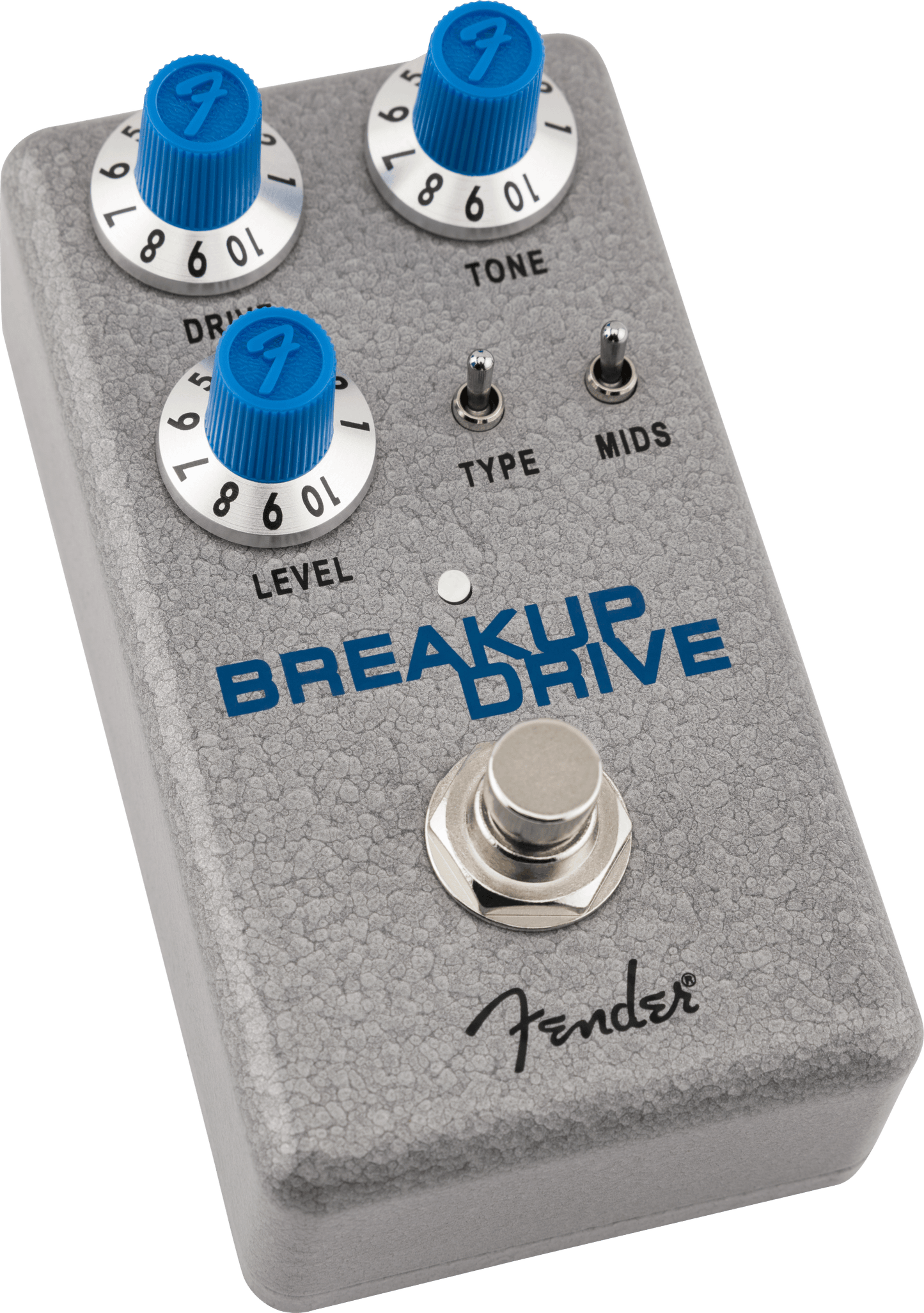

Dial in responsive, tube-like drive tones with the Hammertone® Breakup Drive. The perfect contender for an always-on pedal, this JFET based overdrive is designed with one focus in mind: replicating the dynamic response of hot tubes right at the edge of saturation. Two selectable clipping modes tailor the drive’s character between light breakup and medium-gain overdrive, each supplying an expressive response that cleans up with lighter picking and breaks up more the harder you strum. An expansive tone control and switchable pre-gain mid boost provide powerful frequency shaping tools to hone your final tone. From flavoring your core clean tone to delivering dynamic overdrive on tap, the Hammertone Breakup Drive has you covered.
Overview
Features
- Two selectable JFET based dynamic clipping stages
- Interactive tone control provides a wide range of EQ flavors
- Mids switch selects between flat response and pre-drive mid boost
- Soft-touch relay true bypass with auto bypass when no power is present
- Top mounted jacks and road-ready aluminum enclosure
- Powered by 9-Volt Battery or Center Negative AC Adaptor, Not Included
Elektronik
Allmänt
Color
Gray with Royal Blue Accents
Material
Aluminum
Product Name
Hammertone™ Breakup Drive
Series
Hammertone™
Mätningar
Product Depth
2.44" (62mm)
Product Height
4.4" (112mm)
Product Height/Length
4.4" (112mm)
Product Weight
0.5 lbs (0.23kg)
Product Width
2.2" (56mm)
Övrigt

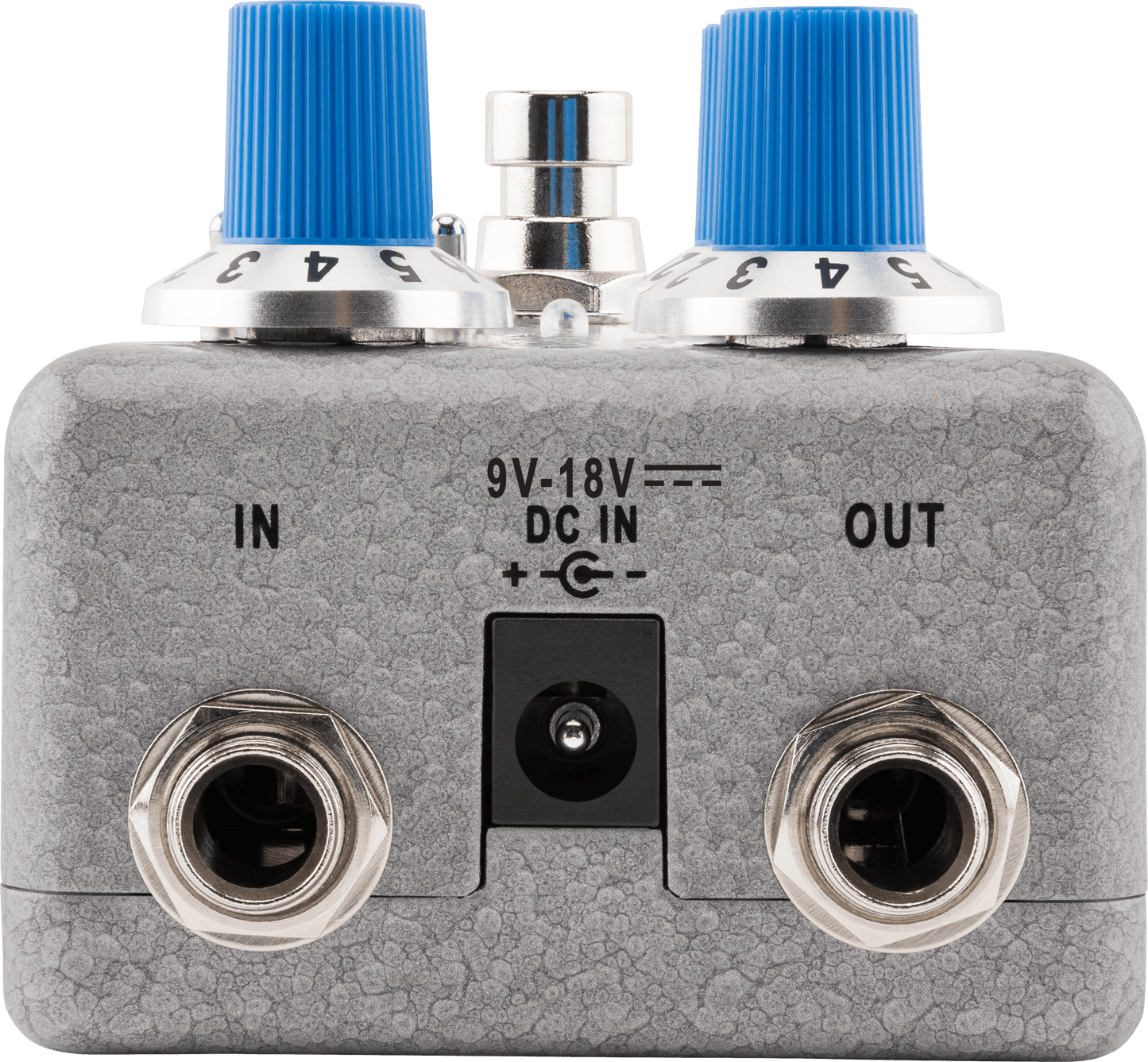

Power Cable
5.5 x 2.1 mm Barrel Connector, Center Negative
Höjdpunkter
JFET© BASED CIRCUITRY
The core drive circuit is designed around JFET transistors, prized for their ability to replicate the tonal behavior of tubes.
DYNAMIC SATURATION
Just like tubes on the edge of breakup, dynamic clipping stages react to your picking and organically saturate more the harder you pick.
SELECTABLE CLIPPING STAGES
Choose between two clipping stages to tailor your saturation level: pushed, edge of breakup or a medium-gain overdrive with higher harmonic content.
MIDS INJECTION SWITCH
Flip the mids switch into the up position to apply a 9dB middle frequency boost before the clipping stage, perfect for cutting through the mix with a classic, mid-heavy overdrive tone
SOFT-TOUCH RELAY BYPASSING
Relay true bypass switching ensures that when the pedal is off, your signal is clean and clear.
POWER WITH 18V FOR MORE HEADROOM
Designed to operate with 9V-18V power supplies. Plug in an 18V power supply to experience an additional 6dB of headroom.
Nedladdningar
- Owner's Manual - Bulgarian
- Owner's Manual - Czech
- Owner's Manual - Greek
- Owner's Manual - English
- Owner's Manual - German
- Owner's Manual - Spanish
- Owner's Manual - Estonian
- Owner's Manual - French
- Owner's Manual - Finnish
- Owner's Manual - Italian
- Owner's Manual - Japanese
- Owner's Manual - Croation
- Owner's Manual - Lithuanian
- Owner's Manual - Dutch
- Owner's Manual - Polish
- Owner's Manual - Latvian
- Owner's Manual - Portuguese
- Owner's Manual - Slovenian
- Owner's Manual - Romanian
- Owner's Manual - Slovak
- Owner's Manual - Swedish
- Fender® Parts and Accessories 2-Year Limited Warranty
